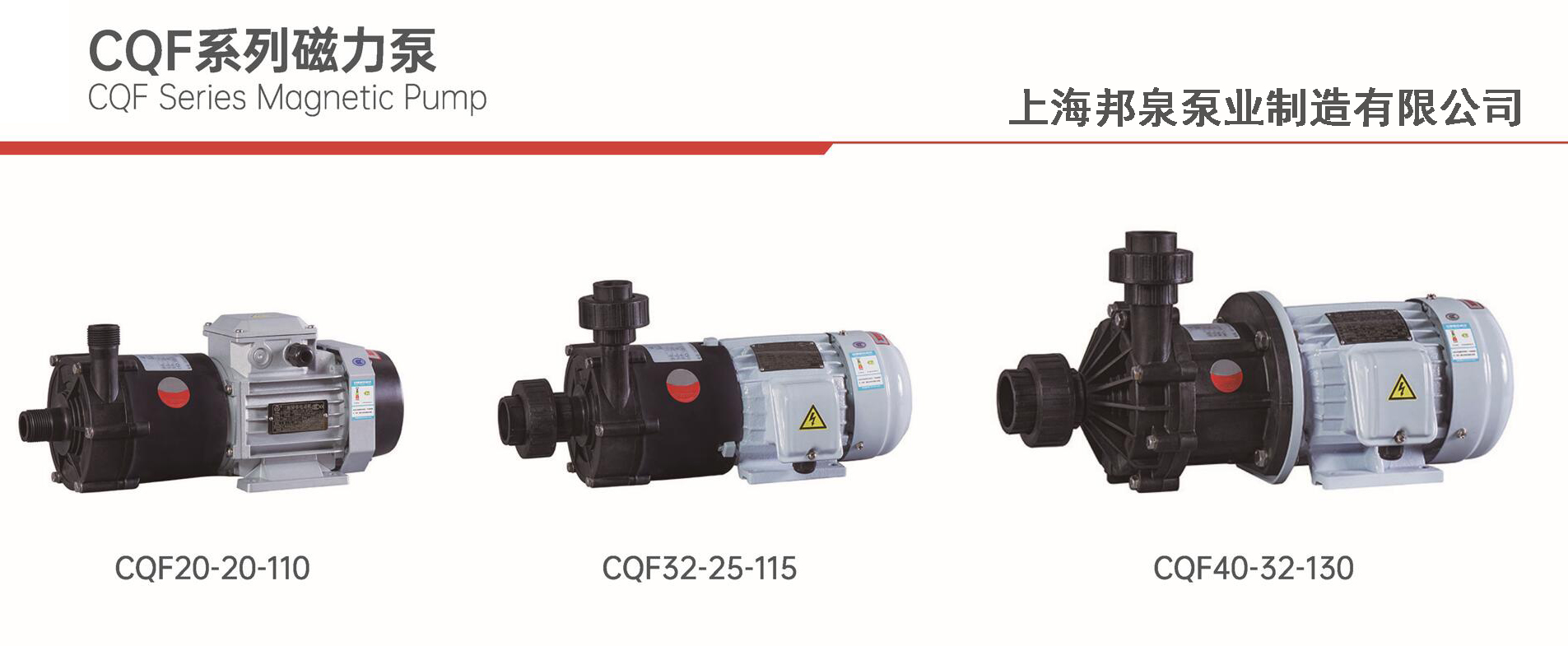

邦泉CQF系列磁力泵因其創新的節能設計使磁力泵能發揮大的效能，極大提高產品的耐用性。優化結構設計塑料部件以玻璃纖維增強。葉輪和磁轉子采用整體注塑，減少泵組件的體積。過流部件的材料采用增強聚丙烯，泵軸、軸承和端環均采用新耐腐蝕材料，加上無軸封無泄漏結構，確保大多數化學流體安全輸送。同時將主要部件模塊化，方便拆卸與檢查，簡化維修保養流程。
Because of its innovative energy-saving design, CQF series magnetic pumps can make the magnetic pumps exert the maximum efficiency and greatly improve the durability of the products.The plastic components adopt an optimized structure and are reinforced by glass fiber. The impellers and magnetic rotors adopt the plastic injection molding method, which reduces the volume of the pump components and increases its efficiency.The flow passage components are made of reinforced polypropylene plastic. Pump shafts, bearings, and end rings are made of the latest corrosion resistant materials. Together with the leakage-free structure without shaft seals, the safe passage of most chemical fluids can be ensured.The pump uses modular main components,which can be easily disassembled and examined. It's easy to maintain.
|
型號 |
入口/出口（直徑） |
軟管接口式 |
頂峰輸出量 |
標準輸出量 |
電機 |
|||||
| 入口 |
出口 |
入口 |
出口 |
流量 |
揚程 |
流量 |
揚程 |
功率 |
電壓 |
|
|
(mm) |
(mm) |
(mm) |
(mm) |
(L/min) |
(m) |
(L/min) |
(m) |
(KW) |
(V) |
|
|
CQF20-20-110 |
20X20 |
26 |
26 |
120 |
14.5 |
92 |
10 |
0.37 |
220/380 |
|
*應要求可提供由任式、法蘭式接口。液體溫度范圍：0-80°C (PP) 0-100°C (PVDF)。介質比重<1.3(若大于該比重，訂貨時請注明)。
|
Model |
In/out (diameter) |
Hose connection |
Maximum output |
Standard output |
Motor |
|||||
| Inlet |
Outlet |
Inlet |
Outlet |
Flow |
Head |
Flow |
Head |
Power |
Voltage |
|
|
(mm) |
(mm) |
(mm) |
(mm) |
(L/min) |
(m) |
(L/min) |
(m) |
(KW) |
(V) |
|
|
CQF20-20-110 |
20X20 |
26 |
26 |
120 |
14.5 |
92 |
10 |
0.37 |
220/380 |
|
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).
Performance parameter
| 型號 | 最大流量(L/min) | 最大揚程（m) | 電機功率(kw) |
| CQF15-15-80 | 60 | 8 | 0.12 |
| CQF20-20-80 | 86 | 6.7 | 0.18 |
| CQF20-15-105 | 97 | 14.2 | 0.37 |
| CQF20-20-110 | 120 | 14.5 | 0.37 |
| CQF25-20-110 | 130 | 15 | 0.55 |
| CQF32-25-115 | 150 | 16 | 0.55 |
| CQF32-25-125 | 250 | 19 | 0.75 |
| CQF32-32-130 | 290 | 21 | 1.1 |
| CQF40-32-130 | 320 | 21.5 | 1.5 |
| CQF40-40-135 | 390 | 24 | 2.2 |
